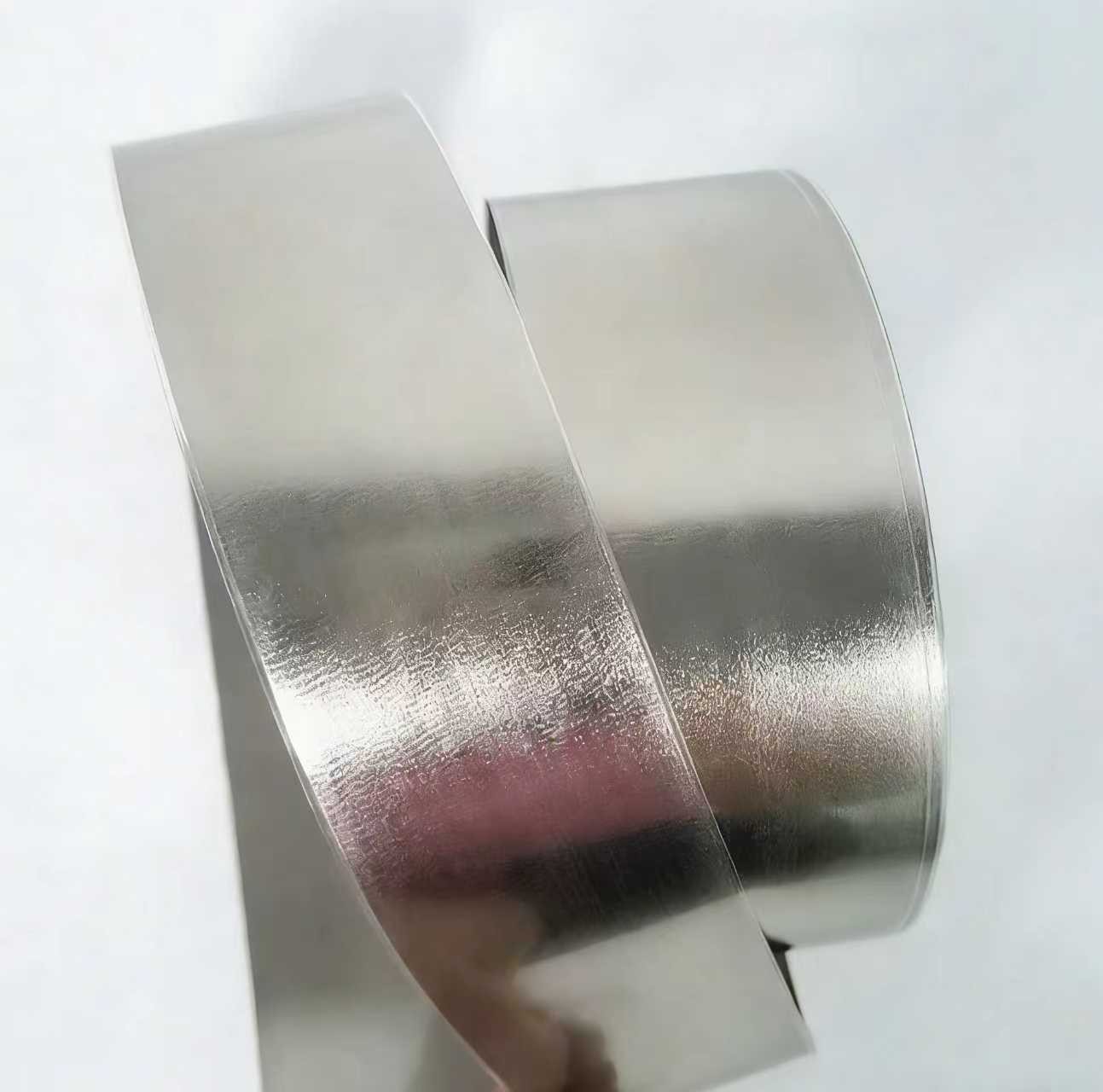

Nanocrystalline magnetic sheets

Feature: *High magnetic permeability (500-1000) - Enhances charging efficiency
*Ultra-thin, as low as 30 μm - Customizable size and thickness, more flexible
*High saturation magnetic induction - Satisfies high-power charging, effectively reduces the volume of the magnetic sheet
*Low loss - Reduces eddy current loss, improves charging efficiency
*Flexible material - Effectively avoids fragmentation and leakage of the magnetic sheet, facilitating operation


Feature：

*High magnetic permeability (500-1000) - Enhances charging efficiency

*Ultra-thin, as low as 30 μm - Customizable size and thickness, more flexible

*High saturation magnetic induction - Satisfies high-power charging, effectively reduces the volume of the magnetic sheet

*Low loss - Reduces eddy current loss, improves charging efficiency

*Flexible material - Effectively avoids fragmentation and leakage of the magnetic sheet, facilitating operation

Application:

* Wireless Charging

* NFC and RFID

* Data Communication

* Inductors and Transformers

* Current Transformers

* Medical Device EMI Shielding

* MST/TWS Coils

* Stylus and Digitizers

* Spike Suppressors

Comparison:

Basic Magnetic property		Nanocrystalline Magnetic sheet	Ferrite
Magnetic induction BS/T		1.25	0.54
Permeability（@13.56MHz）	μ'	400-700	≤150
Permeability（@13.56MHz）	μ''	100-300	3-5
Hc（A/m）		≤1.6	250-600
Resistivity δ（μΩ·cm）		≥130	1.03*10^8
Curie temperature/℃		570	400
Thickness/mm		0.03-0.3	≥0.1
Identification distance		3-5cm	3-5cm
