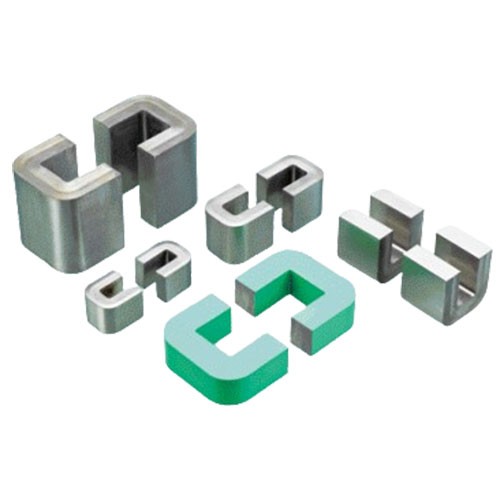

C-type ironcore

Feature:
*Core material and grade: Fe-based amorphous alloy,1k101
*High saturation induction.high satured current,small core volume
*RecNAngular core frame. Easy to mount coils
*Excellent DC-bias characteristics.


Feature:

*Core material and grade: Fe-based amorphous alloy,1k101

*High saturation induction.high satured current,small core volume

*RecNAngular core frame. Easy to mount coils

*Excellent DC-bias characteristics.

Application:

*Output smooth filter choke for switched mode power supply

*PFC boost choke for solar inverters, EV charging pile,

*AC inverter choke. For PV inverters, APF

Performance:

Saturation Flux Density Bs'	1.56T	Hardness Hv	960 kg/mm2
Curie Temperature Tc	410℃	Resistivity r	130 μΩ.cm
CrysNAllization Temperature Tx	500℃	Density	7.18g/cm3
Magnetostriction lS	27×10-6	Core loss Ps (@16KHz,37mT)	<1.0w/Kg

Item/Material	Si-steel	Mn-zn	Amorphous Toroid	Amorphous	High Flux	MPP	Sendust	FeSi powder
	(gapped)	Ferrite	Gap 100ui	Cut-core	Powder	Powder	Powder	60ui
	100ui	Gap 60ui		100ui	60ui	60ui	60ui
Saturation induction Bs(T)	2	0.45	1.56	1.56	1.5	0.75	1.05	1.6
Permeability range ui	50-500	20-100	50-300	50-300	26-150	14-550	26-125	26-90
DC bias change (uo/ui) @100Oe	87%	6%	87%	90%	78%	55%	48%	73%
Core loss Ps(mW/cc) @50khz/0.1T	bad	15	300	300	270	160	290	580
Curie temp. Tc (℃)	750	220	410	410	500	450	500	700
Operating frequency range(KHz)	＜1	＜500	＜50		＜50	＜300	＜200	＜50
